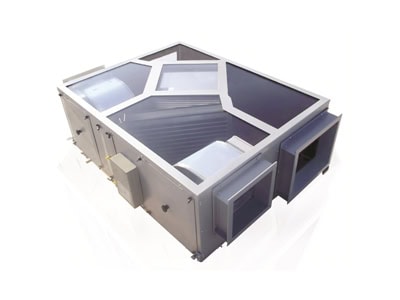

Model URTH 4000

Manufacturer: Untes

Description

  • Monobloc, slim and flexible structure
  • Galvanized steel sheet
  • Leak proof gaskets to provide full air tightness on the panels
  • Plate heat recovery
  • K-Flex insulation materials
  • Electric heater
  • BMS (Building Management System) compatibility
  • Air flow capacity from 500 to 4000 m3/h
  • Available with different coil capacities
  • Available accessories
    • Air suction filter
    • Air return filter
    • Filter sensor
    • Fresh air quality sensor
    • Anti freeze plate heat recovery
    • Circular connection
    • Electric heater

Technical features

Airflow [m3/h] 4000
External static pressure [Pa] 147
Main supply fans [Ф / V / Hz] 1 / 230 / 50
Main supply electric heater [Ф / V / Hz] 3 / 400 / 50
Ventilator motor power [W] 550
Heating capacity of the electric heater:

Option 1 [kW]

Option 2 [kW]

Option 3 [kW]



12,5

25,0

37,5

Volume min./med./high. [dB(A)] 49 / 54 / 57
Dimensions [mm] 610 х 1300 х 1300
Weight [kg] 136
